Jiangsu Keepmoving Vehicle Co., Ltd.
Модель: VCT001
Бренд: КМВ
Тип коробки передач: Руководство по эксплуатации
Старый и новый: Новый
Стандарты выбросов: Евро 4
топливо: Дизель
место происхождения: Китай
Capacity (Load): 11 - 20T
Horsepower: 150-250hp
Объем бака: 8000L
Chassis Brand: Howo Shacman
Drive Type: 6x4
The file is encrypted. Please fill in the following information to continue accessing it

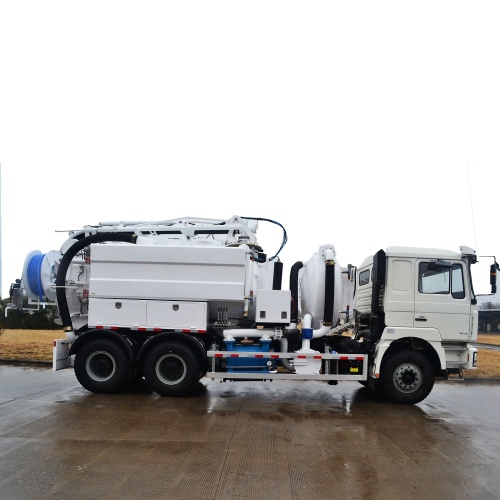

Сверхмощные вакуумные очистные машины оснащены высокопроизводительным вакуумным насосом и системой водоструйной очистки под высоким давлением для очистки канализации и обслуживания трубопроводов. Они эффективно собирают сточные воды и ил, одновременно удаляя жир, осадок и мусор из муниципальных и промышленных дренажных систем.
Применение и особенности канализационных реактивных грузовиков:
| No. | Component | Key Specifications |
|---|---|---|
| 1 | Chassis | Dongfeng 6x4 chassis Engine: Euro 3 / Euro 4 emission standard 4 PTOs to drive vacuum pump, high-pressure pump and hydraulic systems Chassis model can be customized per customer request |
| 2 | Vacuum Tank | 8,000L (8m³) capacity, cylinder type Material: SS304L stainless steel, 6mm thickness Design pressure: -0.9 bar Hydraulic lifting (45°) for sludge discharge, with safety support Rear sludge outlets (4–6 valves), water level indicator |
| 3 | Clean Water Tank | 3,000L (3m³) capacity Material: SS304 stainless steel, 4mm thickness Low-level alarm included |
| 4 | Rear Door | Hydraulic-controlled rear door 2 cylinders for opening, 4 cylinders for locking 6 suction pipes + 6 discharge valves |
| 5 | Vacuum Pump | Kenflo liquid-ring vacuum pump Air flow: 3,000 m³/h, vacuum rate: 90% Customizable pump options available |
| 6 | High-Pressure Pump | German-made piston pump Flow rate: 212 L/min at 200 bar Brand/type customizable |
| 7 | Boom & Hoses | Telescopic suction boom: 300° horizontal rotation, 6m working radius, 3m vertical lift 6” stainless steel + rubber suction hose High-pressure hose reel (120m, ID 25mm), hydraulic-controlled 100° rotation |
| 8 | Other Features | Cooling water tank: 1,500L (for vacuum pump) Surface treatment: Sandblasting + primer + finish paint, color per customer choice Operation manual and factory training (1–2 days) included
|
