Jiangsu Keepmoving Vehicle Co., Ltd.
| Количество минимального заказа: | 1 |
Оттенок:
Бренд: КМВ
Тип коробки передач: Руководство по эксплуатации
Старый и новый: Новый
Стандарты выбросов: Евро 4
топливо: Дизель
место происхождения: Китай
Capacity (Load): 11 - 20T
Horsepower: 150-250hp
Объем бака: 8000L
Chassis Brand: Howo Shacman
Drive Type: 6x4
The file is encrypted. Please fill in the following information to continue accessing it
Меры предосторожности при эксплуатации: Перед загрузкой убедитесь, что жидкость совместима с материалом резервуара, уплотнениями, клапанами и системой трубопроводов. Никогда не превышайте номинальную емкость бака, полезную нагрузку автомобиля или ограничения по осям. Перед работой осмотрите корпус резервуара, точки крепления, клапаны, шланги, люки и насос. Перед транспортировкой надежно закройте все крышки и клапаны. При необходимости очищайте и сливайте резервуар после использования, чтобы свести к минимуму загрязнение, накопление осадка и коррозию.
| Truck Model： | Dongfeng, Foton, Howo, JieFang, Other, Shacman, Steyr | Condition： | New |
| Purpose： | for retrofit/upgrade | OE NO.： | KM202403001 |
| Place of Origin： | Jiangsu, China | Size： | 4800*2200*2500 |
| Material： | carbon steel | Brand Name： | KMV |

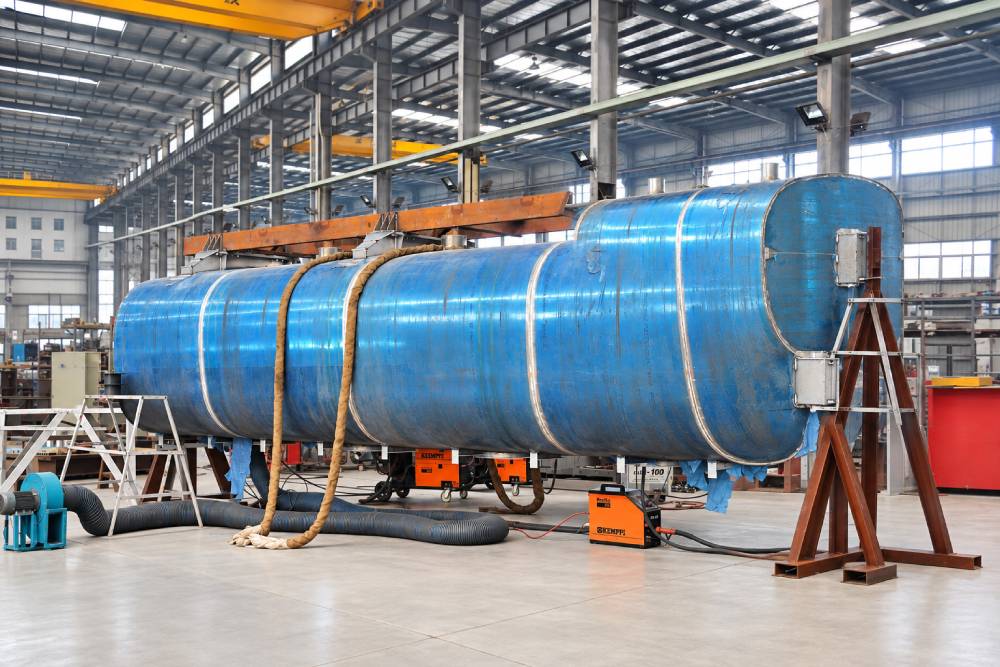

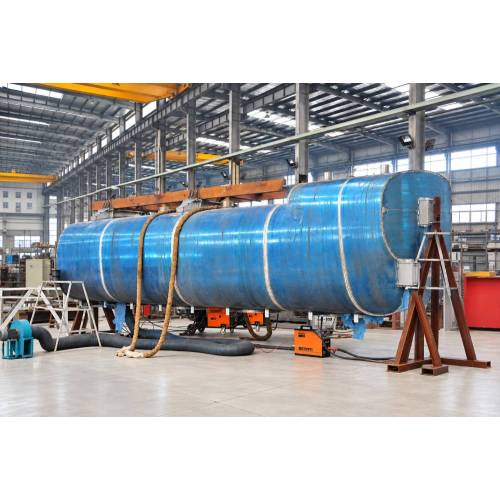

| Model Number： | KM202403001 | Product name： | Vacuum Truck body |
| Tank Volume： | 0.8CBM to 32CBM | Materials： | Carbon steel/stainless/aluminum |
| Thickness： | 6mm or 8mm | Design Pressure： | 2 Bar |
| Manway： | 450mm 550mm | Secondary： | 350mm or 450mm |
| Rear door： | Movable or fixed | Shape： | Round |
| Paint Color： | As Per Customer's Request | ||
| No. | Main components | Detail Description |
| 1 | Chassis | Shansman,Dongfeng or Howo brand available,6x4 Engine is Euro 3 or 4 emission standard, There four pcs PTO to drive vacuum pump,high pressure pump and all kinds of hydraulic equipment. Chassis Model will as per cusotmer's final confirm. |
| 2 | Vacuum tank | Tank Shape:Cylinder type ,Vacuum tank volume is 5 to 12CBM,made by SS304L or carbon steel or aluminum plate,6mm thickness shell. Design Pressure:-0.9 Bar.There some U shape strengthen rims outside the sludge tank body to offer stonger support to the tanker body. 4 inch or 6inch outlet valve in the rear to release the sludge. |
| 3 | Clean Water tank | Tank volume 3CBM,made by SS304 steel,4mm thick,located on both side of the vacuum tank,with lower lever alarm. |
| 4 | Rear Door | Controlled by Hydraulic,2 cylinders open the door,and 4 cylinders closed the door,6 suction pipe and 6 discharge valves. |
| 5 | Cooling water tank | 1500L,located behind the Cab of the truck,use for cooling the vacuum pump. |
| 6 | Others | Telescopic suction boom: Top Mounted,Remoted Control,Swivel in both the vertical and horizontal plane.300°horizontal rotation, 6m working radius and vertical lift up to 3m above ground.Dia 6 stailess and rubber suction hose. High press hose reel 1.120 M HP hose ID25MM,Control by hydralic 100°horizontal rotation. Painting All stainless steel parts will painted by primer and finish paint,sand blasting before painting,coloer as per customer's choose. Operation instructions This instruction will guide customer how to operation this truck. Training Before delivery:we can offer one or two days operation of the truck training in our factory. |
| 7 | Remarks | Above information just for reference,for more detail information,please kindly contact Iris Huang. |
