Jiangsu Keepmoving Vehicle Co., Ltd.
Старый и новый: Новый
Загрузить: Воды, Масло, Химическая
Форма привода: 4X2, 6x4
топливо: Дизель
место происхождения: Китай
The file is encrypted. Please fill in the following information to continue accessing it

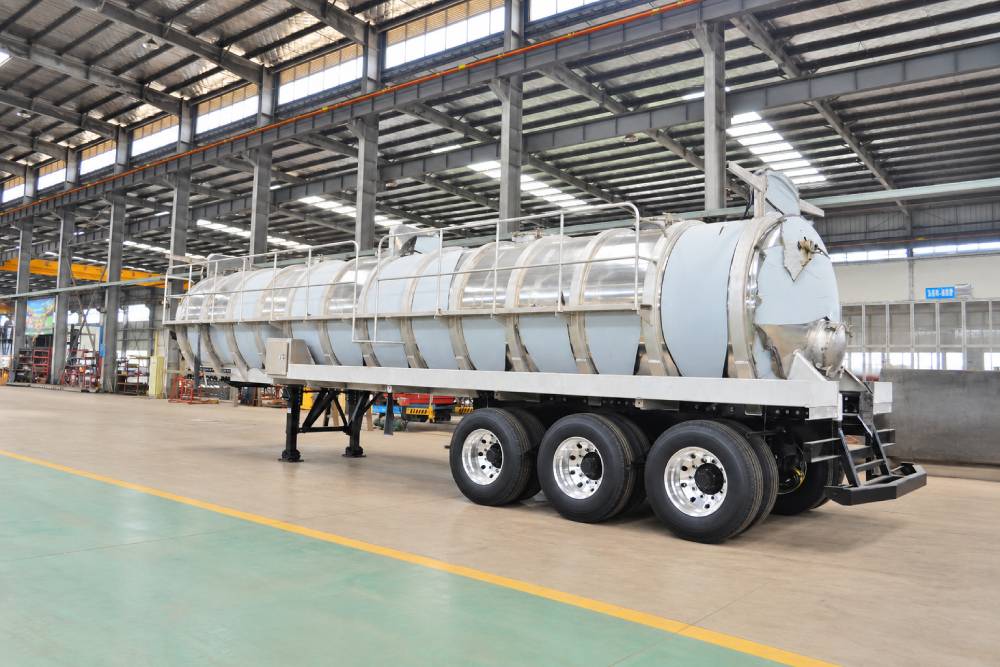

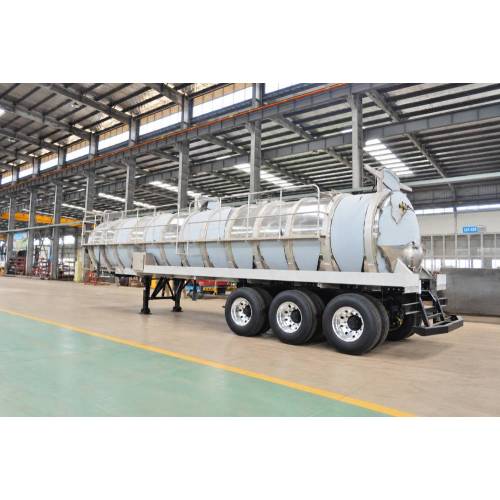

Вакуумные прицепы из алюминиевого сплава — практичный выбор для сбора промышленных сточных вод, очистки резервуаров и операций по техническому обслуживанию. Их легкая конструкция может повысить эффективность транспортировки, а вакуумная система быстро удаляет совместимые жидкости и ил из ям, резервуаров и дренажных зон. Различные емкости резервуаров, насосы и варианты слива могут быть настроены для конкретного промышленного применения.
Примечания по использованию : Определите отходы перед загрузкой и проверьте совместимость с резервуаром, уплотнениями и вакуумной системой. Не собирайте коррозийные, опасные или неизвестные вещества, если только оборудование не предназначено и не одобрено специально для них. Регулярно проверяйте резервуар на наличие повреждений и соблюдайте рекомендуемый график технического обслуживания.
| Truck Model： | Dongfeng, Foton, Howo, JieFang, Other, Shacman, Steyr | Condition： | New |
| Purpose： | for retrofit/upgrade | OE NO.： | KM202403001 |
| Place of Origin： | Jiangsu, China | Size： | 4800*2200*2500 |
| Material： | carbon steel | Brand Name： | KMV |
| Model Number： | KM202403001 | Product name： | Vacuum Truck body |
| Tank Volume： | 0.8CBM to 32CBM | Materials： | Carbon steel/stainless/aluminum |
| Thickness： | 6mm or 8mm | Design Pressure： | 2 Bar |
| Manway： | 450mm 550mm | Secondary： | 350mm or 450mm |
| Rear door： | Movable or fixed | Shape： | Round |
| Paint Color： | As Per Customer's Request | ||
| No. | Main components | Detail Description |
| 1 | Chassis | Shansman,Dongfeng or Howo brand available,6x4 Engine is Euro 3 or 4 emission standard, There four pcs PTO to drive vacuum pump,high pressure pump and all kinds of hydraulic equipment. Chassis Model will as per cusotmer's final confirm. |
| 2 | Vacuum tank | Tank Shape:Cylinder type ,Vacuum tank volume is 5 to 12CBM,made by SS304L or carbon steel or aluminum plate,6mm thickness shell. Design Pressure:-0.9 Bar.There some U shape strengthen rims outside the sludge tank body to offer stonger support to the tanker body. 4 inch or 6inch outlet valve in the rear to release the sludge. |
| 3 | Clean Water tank | Tank volume 3CBM,made by SS304 steel,4mm thick,located on both side of the vacuum tank,with lower lever alarm. |
| 4 | Rear Door | Controlled by Hydraulic,2 cylinders open the door,and 4 cylinders closed the door,6 suction pipe and 6 discharge valves. |
| 5 | Cooling water tank | 1500L,located behind the Cab of the truck,use for cooling the vacuum pump. |
| 6 | Others | Telescopic suction boom: Top Mounted,Remoted Control,Swivel in both the vertical and horizontal plane.300°horizontal rotation, 6m working radius and vertical lift up to 3m above ground.Dia 6 stailess and rubber suction hose. High press hose reel 1.120 M HP hose ID25MM,Control by hydralic 100°horizontal rotation. Painting All stainless steel parts will painted by primer and finish paint,sand blasting before painting,coloer as per customer's choose. Operation instructions This instruction will guide customer how to operation this truck. Training Before delivery:we can offer one or two days operation of the truck training in our factory. |
| 7 | Remarks | Above information just for reference,for more detail information,please kindly contact Iris Huang. |
